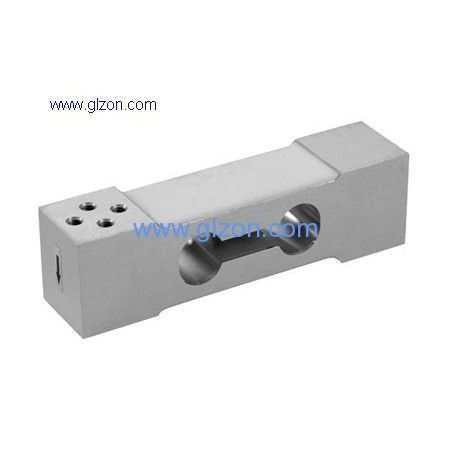

產品特點： 傳感器AM90D無色陽ji化處理;膠密封處理，防護等級IP65。鋁稱重傳感器是yi種低調的單點式稱重傳感器專為低成本稱重平臺低的直接安裝。它的體積小，結合精度高，成本低，這使得稱重傳感器非常適用于地上衡，電子地上衡，低調地磅，數字地磅，地上秤，地上天平秤，無框地板，框架型地坪規模，防爆地磅，可移動地磅，臺秤，牲畜秤，坑的規模，軌道衡，數字式地磅，數字重量平衡，電子秤的平衡，數字精密天平，數字計數秤，數字電子天平，數字yi體平衡，地磅，臺秤，嬰兒秤。
Technical Parameter:
| Capacity: | 60Kg~350Kg |

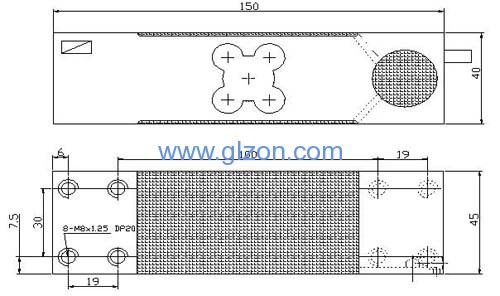

Outline Size: | 45×40×150 |
Rated Output: | 2.0mv/V±5% |
Zero Balance: | ±2% mV/V |
Non-Linearity: | ±0.015%R.O. |
Hysteresis Non-Repeatability: | ±0.015%R.O. |
Creep(30 Minute): | ±0.03%R.O. |
Temperature Compensated For Output: | ±0.03%R.O./10 |
Temperature Compensated For Zero: | ±0.03%R.O./10 |
Input Resistance: | 405±10Ω |
Output Resistance: | 350±3Ω |
Insulation Resistance: | ≥5000MΩ |
Temperature Compensated: | -10to+40 |
Operating Temperature Range: | -20to+60 |
Recommend Excitation Voltage: | 5~12VDC |
Maximum Excitation Voltage: | 18VDC |
Safe Overload: | 150%.R.C |
Cable: | 1.5m(φ5mm) |
