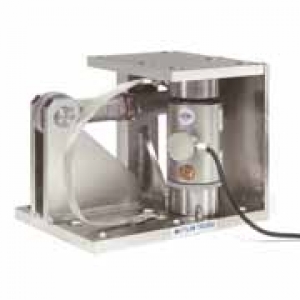

10-50噸大噸位稱重模塊WBK
合金鋼結構/不銹鋼結構(可選)；使用柱式CA-CGD稱重傳感器；可應用于惡劣工業環境；適用于罐裝秤、水泥罐秤、料斗秤和配料秤等；
Features 主要特點
● Equipped with self-restoring rocker pin load cell CA-CGD,class C2,C3
accordingto OIML R60
● Stay rod included in the scope of supply
● Designed for lift-off device
● Easy installation
● Alloy steel construction / stainless steel construction (option)
● 用于精度等級為C2,C3的自復位柱式傳感器CA-CGD；
● 包括支撐桿
● 設計應于離地保護裝置
● 安裝簡單
● 合金鋼結構/不銹鋼結構(可選)
Dimension 尺寸(可替代梅特勒-托利多 GW 稱重模塊；替代HBM C16M 稱重模塊）
Specification 技術參數
Capacities | 量程 | 10t 20t 25t 30t 40t 50t |
Rated Output | 額定輸出 | 2.0mV/V ±0.002% |
Zero Balance | 零點平衡 | ±0.002% of rated output |
Creep after 30 minutes | 蠕變 | ±0.03% of rated output |
Nonlinearity | 非線性 | ±0.03% of rated output |
Hysteresis | 滯后 | ±0.03% of rated output |
Repeatability | 重復性 | ±0.03% of rated output |
Temp. effect on output | 靈敏度溫漂 | ≤0.002% of applied output/?C |
Temp. effect on zero | 零點溫漂 | ≤0.002% of rated output/?C |
Safe Temp. Range | 可用溫度范圍 | -30?C to + 70?C |
Temp. Compensated | 溫度補償范圍 | -30?C to + 40?C |
Safe Overload | 安全載荷 | 150% |
Input Impedance | 輸入阻抗 | 400 ohm ± 10 ohm |
Output Impedance | 輸出阻抗 | 352 ohm ± 3 ohm |
Insulation Resistance | jue緣阻抗 | ≥5000 M ohm (50V DC) |
Rated Excitation | 推薦激勵電壓 | 10V DC/AC |
Maximum Excitation | zui大激勵電壓 | 15V DC/AC |
Cable Length | 導線長度 | 20t 12m 30t 15m |
Cable Color Code | 導線顏色 | Red(+E) Black(-E) Green(+S) White(-S) |
